Implantable Micro-Devices for Self-Charging Pacemakers

The over one million pacemakers implanted each year worldwide currently require an additional surgical procedure every 5–10 years to replace the batteries. Dartmouth engineering researchers, along with clinicians at UT Health San Antonio, have published promising results of a new way to power these and other implantable medical devices.

The study investigates using a combination of thin-film energy conversion materials with a minimally-invasive mechanical design to enable self-charging batteries for a potentially wide-range of implantable devices including pacemakers and defibrillators.

“We’re trying to solve the ultimate problem for any implantable biomedical device,” says Dartmouth engineering professor John X.J. Zhang, a lead researcher on the study. “How do you create an effective energy source so the device will do its job during the entire life span of the patient, without the need for surgery to replace the battery?”

“Of equal importance is that the device not interfere with the body’s function,” adds Dartmouth research associate Lin Dong, first author on the paper. “We knew it had to be biocompatible, lightweight, flexible, and low profile, which also makes it not only fit into the current pacemaker structure but also scalable for future multi-functionality.” Other key collaborators on the study include Dartmouth engineering professor Zi Chen, an expert on thin structure mechanics, and Dr. Marc Feldman, professor and clinical cardiologist at UT Health San Antonio.

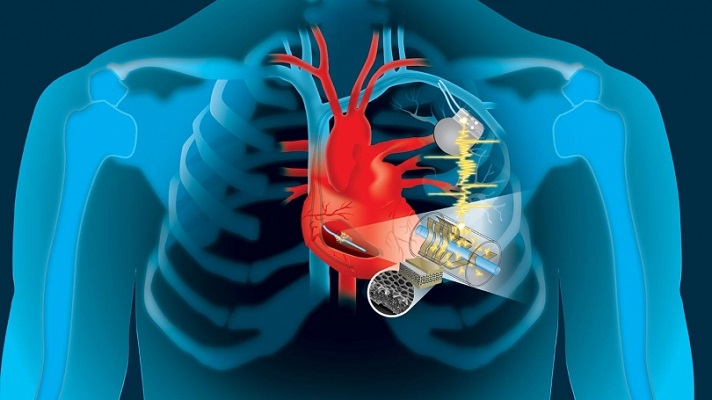

The work proposes a modification to existing pacemaker design that would harness the kinetic energy of the lead wire that’s attached to a beating heart and convert it into electricity to continually charge the batteries. The added material is a type of specialty polymer piezoelectric film called “PVDF” and, when designed with porous structures — either an array of small beams or a flexible cantilever — it can convert mechanical motion to electricity. The same modules could also be used as sensors which enable data collection for real-time monitoring of patients.
